Paint Storage Rack Generator
A tiered rack that holds every paint bottle upright in its own hole, so your whole palette is a glance away.
Settings
Grid
Holes
Construction
Vector Export
Generate a design to see the 2D preview
Generate a design to see the export preview
Examples

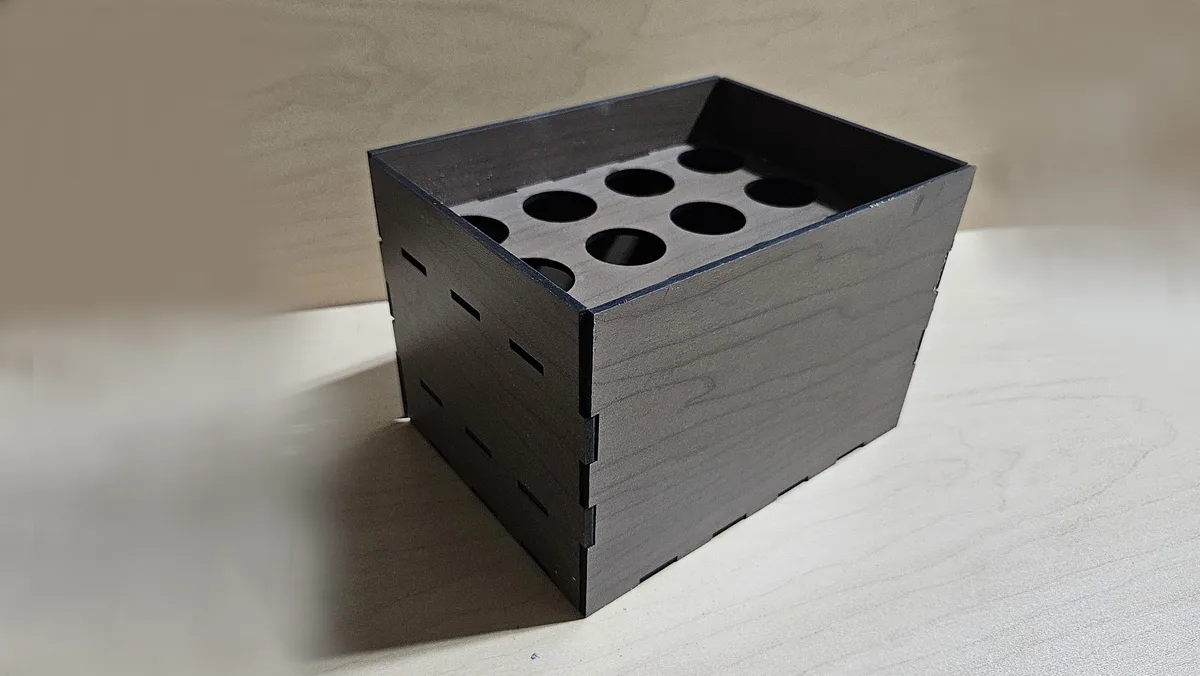

Laser cut in walnut plywood. The finger joints press together with no glue, and the drilled top shelf keeps paints, markers, and drill bits standing upright.
Material used:
Set the thickness slider to match your sheet before cutting, since every finger joint and shelf slot is derived from it. Size the hole diameter to your bottles, markers, or bits.
How to use
Frequently Asked Questions
Yes. Set the shelves, hole size and layout you want, then download the SVG or the print-ready parts with no watermark and no export limits.
About
This free paint storage rack generator lays out a finger-jointed box with one or more stacked shelves, each drilled with a grid of round holes sized to your paint bottles and pots. The shelves slot into the walls with matching finger tabs, and every joint is derived from your material thickness so the rack press-fits together with minimal glue. Use it for miniature paints, ink bottles, craft pots, or any round container.
